Super Brio (BR10)
Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis
- Country
- France
- Manufacturer / Brand
- Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68496
Erwerbszustand
Erwerbszustand
From the collection of Miniradios, France.

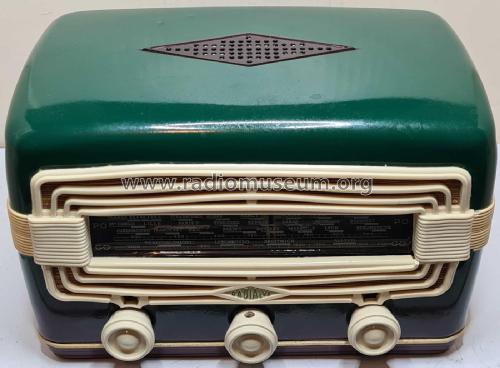

Radialva Super Brio

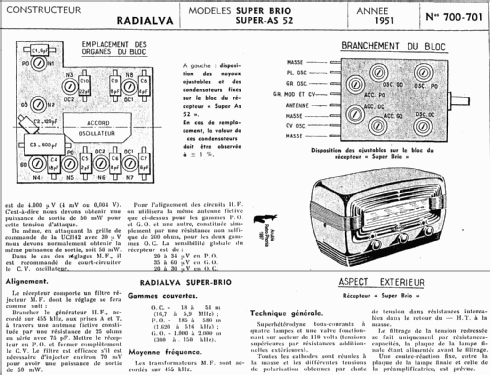

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-130 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Super Brio - Radialva, Véchambre Frères;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 220 x 135 x 135 mm / 8.7 x 5.3 x 5.3 inch
- Notes
-
3 gammes d'ondes. Contre-réaction BF. Filtre d'antenne.
Coffret métal, 4 coloris : ivoire, vert, façon cuir, façon bois.
Dans le Guide ce modèle est appellé BR10, très probablement d'une mauvaise lecture de BRIO comme BR10.

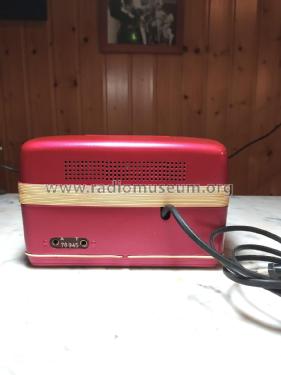

Voir aussi modèle Princeps avec PO et 3x OC.
- Net weight (2.2 lb = 1 kg)
- 2.4 kg / 5 lb 4.6 oz (5.286 lb)
- Price in first year of sale
- 9,995.00 FRF
- External source of data
- Serge Laffont/Martin Renoth
- Mentioned in
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 272)
- Literature/Schematics (1)
- -- Original prospect or advert (Saison 1950-1951)
- Literature/Schematics (2)
- Schémathèque Sorokine (SRK) (No. 700)
