• Country
• France

• Manufacturer / Brand
• Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118703

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EF89 EBF80 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105; 117; 130; 150; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org

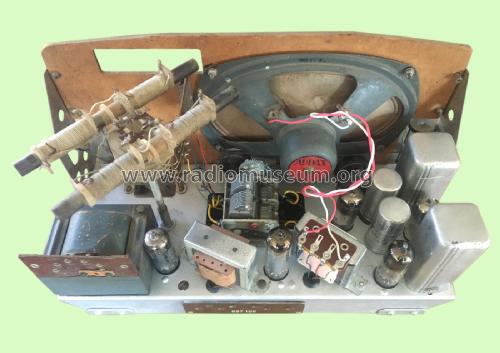

• Model: Super But 57 - Radialva, Véchambre Frères;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 335 x 220 x 180 mm / 13.2 x 8.7 x 7.1 inch

• Notes

• Gammes OC, BE (bande étalée), PO, GO. Prises PU et HP supplémentaire. HP de 13 x 19 cm.

  Coffret bakélite marron ou aubergine.



• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Wouter Heijke. See "Data change" for further contributors.
