• Country
• France

• Manufacturer / Brand
• Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62927

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF9 EF9 CBL6 CY2

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch

• Material
• Bakelite case

• from Radiomuseum.org

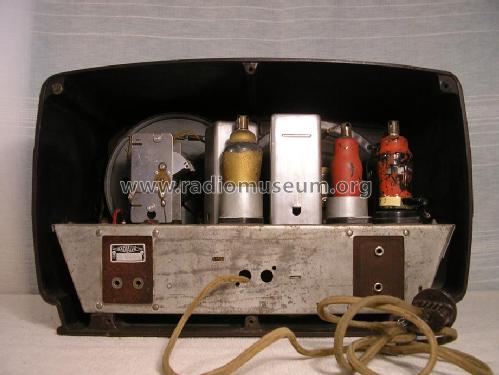

• Model: Super-Chic [tous courants, 1942] - Radialva, Véchambre Frères;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 245 x 230 mm / 15.4 x 9.6 x 9.1 inch

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Schémathèque Toute la Radio (STR) (No. 486)
