- Country
- France
- Manufacturer / Brand
- Radio-AIR (A.I.R.); Neuilly, Asnières
- Year
- 1934 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 309318
- Number of Tubes
- 5
- Main principle
- TRF with regeneration
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org

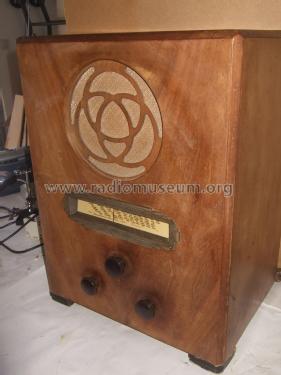

- Model: W5 - Radio-AIR A.I.R.; Neuilly,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 380 x 500 x 270 mm / 15 x 19.7 x 10.6 inch
- Notes
-
Le type du modèle n'est pas certain. Le design de la grille de HP est identique à cette trouvée sur autres radios du Radio AIR, mais il aussi est incertain si cette radio a été construite par AIR.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Author
- Model page created by Bekir Yurdakul. See "Data change" for further contributors.
