Super Reporter 58 AM-FM
Radio Commercial; Paris
- Country
- France
- Manufacturer / Brand
- Radio Commercial; Paris
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 138787

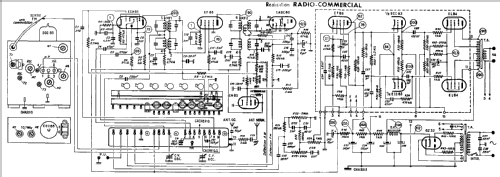

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 115; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super Reporter 58 AM-FM - Radio Commercial; Paris
- Shape
- Tablemodel with Push Buttons.
- Notes

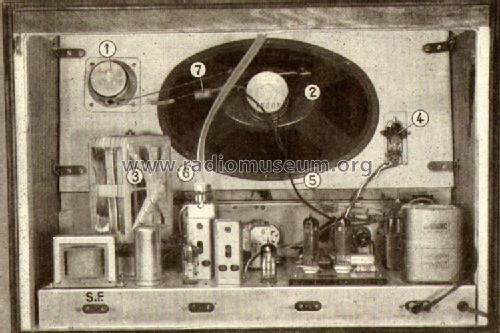

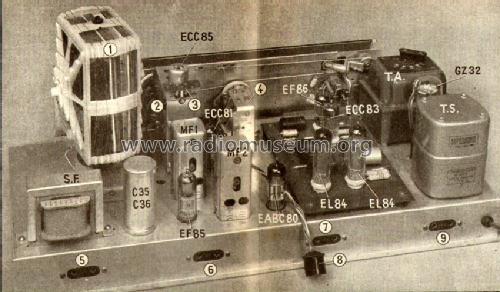

- Existe avec la gamme GO PO OC BE FM, 2 stations préréglées ( Luxembourg et Europe 1), clavier 7 touches, cadre à air rotatif, amplificateur B.F. sur circuit imprimé, push-Pull d'EL84, ébénisterie noyer d'Amérique.
- Literature/Schematics (1)
- Radio Constructeur et Dépanneur décembre 1957
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
