• Country
• France

• Manufacturer / Brand
• Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33900

• • alternative name: LL || Radio LL

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• CK1 CF2 CB1 CF1 CL2 CY2

• Main principle
• Superheterodyne (common); ZF/IF 110,3 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110; 130; 150; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

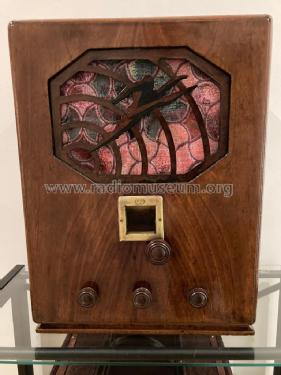

• Model: 3684 - Radio L.L. Lucien Levy, LL

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Présélecteur à deux circuits couplés inductivement. Éclairage cadran par ampoule branchée directement sur le secteur.

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Schémathèque Toute la Radio (STR) (No. 44)
