- Country
- France
- Manufacturer / Brand
- Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 100415
-
- alternative name: LL || Radio LL
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 130; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
- Power out
- 1.7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

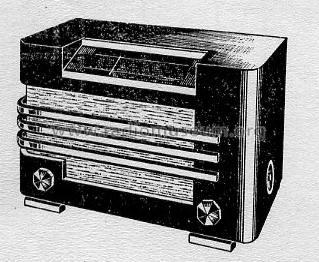

- Model: 638TC - Radio L.L. Lucien Levy, LL
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 445 x 295 x 235 mm / 17.5 x 11.6 x 9.3 inch
- Notes
-
Dial lamps: 2x 6,5V/0,1A.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 2,350.00 FRF

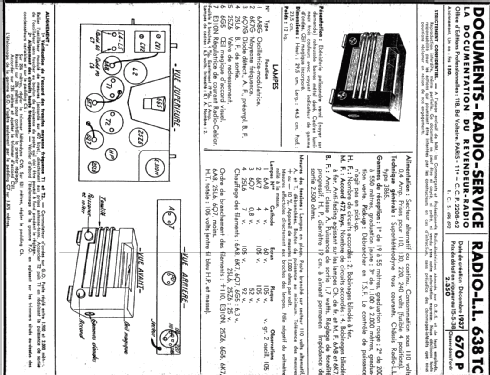

- Circuit diagram reference
- La Documentation du Revendeur - Radio
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
