Superhétérodyne A A126 7 lampes (aussi en 6, 8)
Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
- Country
- France
- Manufacturer / Brand
- Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
- Year
- 1924–1926 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72536
-
- alternative name: LL || Radio LL
- Number of Tubes
- 7
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 4 or 6 & 80-90 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Superhétérodyne A A126 [7 lampes ] - Radio L.L. Lucien Levy, LL
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 425 x 260 x 295 mm / 16.7 x 10.2 x 11.6 inch
- Notes
-
Façade métal bouchonné - 7 lampes à changement de fréquence par bigrille - ce modèle a existé en 6 et 8 lampes également.

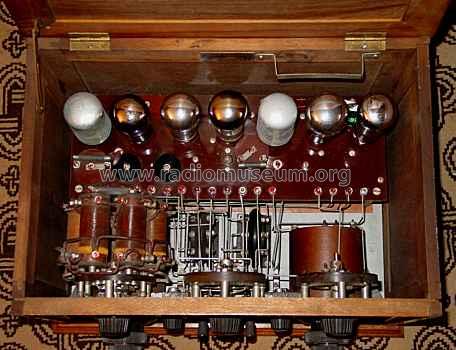

Brushed aluminum panel. 7 tubes: 6 triodes, 1 Bigrille-tetrode (1st.det.); same model was made with 6 or 8 tubes as well.

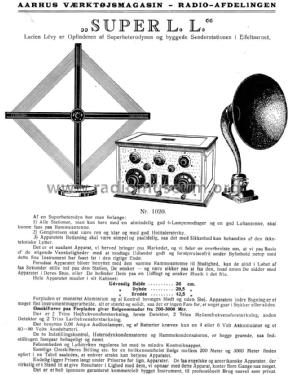

At least a very similar model (if not the same) is called in 1926 "Super Heterodyne Modèle A" which inside has a name plate "Type 3318", Série 2, No. 65. It is often simply called model 3318.
- External source of data
- Guide du Collectionneur Biraud/Foster
- Mentioned in
- TSF Antique 1921 à 1927 (p.118, pour 7 lampes)
- Author
- Model page created by Jean Claude Pigeon † 2008. See "Data change" for further contributors.
