- Country
- France
- Manufacturer / Brand
- Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62759
-
- alternative name: LL || Radio LL

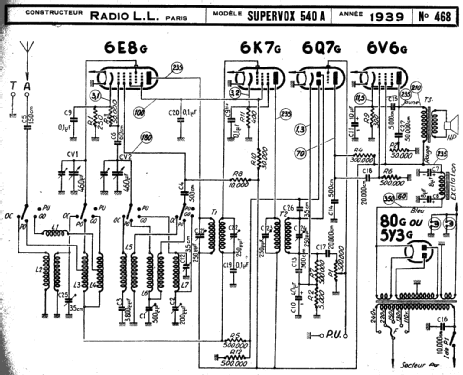

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Supervox 540A - Radio L.L. Lucien Levy, LL
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 520 x 295 x 260 mm / 20.5 x 11.6 x 10.2 inch
- Notes
- 80G ou 5Y3G . Dial lamps: 2x 6,3V/0,3A
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Price in first year of sale
- 1,795.00 FFR
- External source of data
- Serge Laffont/Martin Renoth
