- Country
- France
- Manufacturer / Brand
- Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68625
-
- alternative name: LL || Radio LL

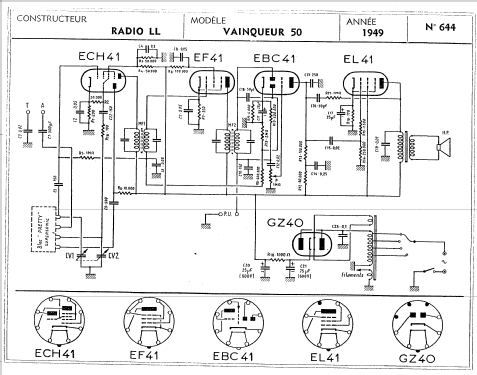

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Vainqueur 50 - Radio L.L. Lucien Levy, LL
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 270 x 240 mm / 16.5 x 10.6 x 9.4 inch
- Notes
-
3 gammes d'ondes: OC de 5.8 à 18 MHz, PO de 515 à 1620 kHz, GO de 150 à 300 kHz.
Ébénisteir rehaussée de marqueteries et enjoliveurs.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- External source of data
- Serge Laffont/Martin Renoth
- Mentioned in

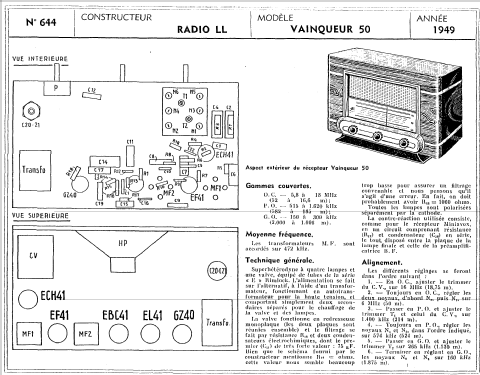

- Schémathèque Toute la Radio (STR) (No. 644)
- Literature/Schematics (1)
- -- Original prospect or advert
