• Year
  • 1935
  • Category
  • Detector-Radio (Crystal or diode, without tubes/transistors)
  • Radiomuseum.org ID
  • 85805

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Main principle
  • Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Bakelite case
  • from Radiomuseum.org

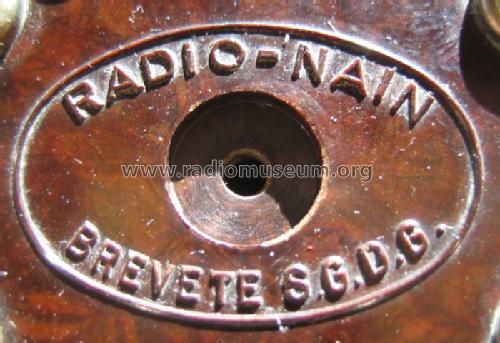

  • Model: Radio-Nain Poste à Diode - Diode Detector - SODIMO, Société de Diffusion
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 80 x 20 x 80 mm / 3.1 x 0.8 x 3.1 inch
  • Notes
  • Poste miniature, fonctionne sans galène, sans pile, sans lampe, sans accus. Réception de 200 à  600 m.

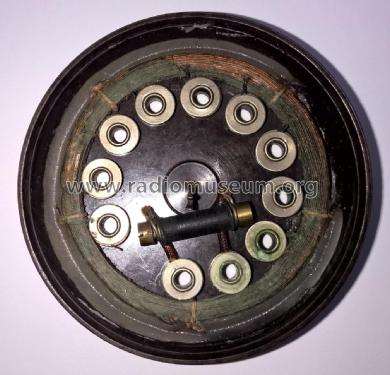

    La détection est probablement effectuée par un élément Westector ou par une diode similaire - appelée "détecteur à cristal".

  • Net weight (2.2 lb = 1 kg)
  • 0.1 kg / 0 lb 3.5 oz (0.22 lb)
  • Price in first year of sale
  • 39.00 FRF
  • Mentioned in
  • -- Original prospect or advert (L'Intransigeant, 10.04.1935)
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Christian Wirth. See "Data change" for further contributors.
