• Country
• France

• Manufacturer / Brand
• Radio Perfecta; Saint-Max, Nancy

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 328108

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 ECF1 CBL6 CY2

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-130 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

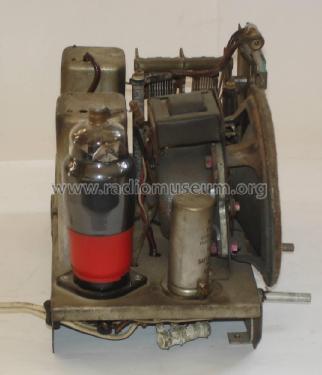

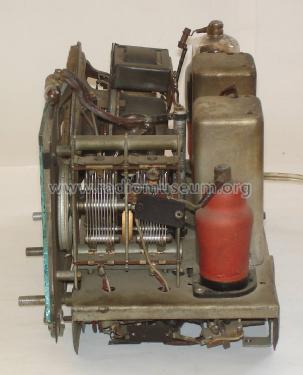

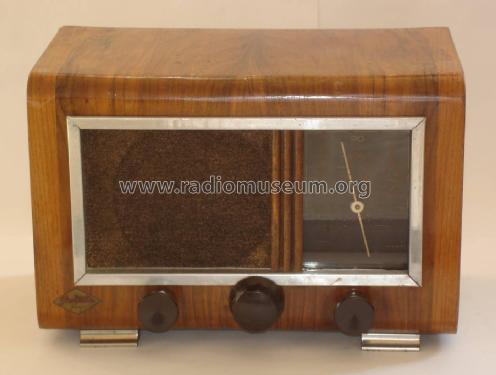

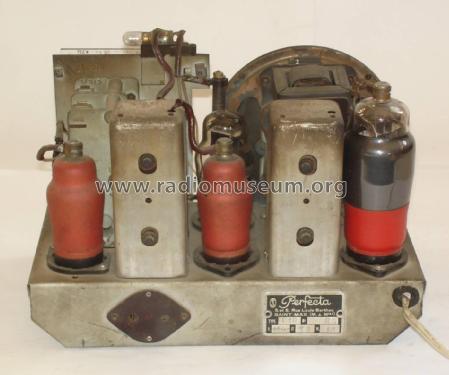

• Model: Baby C 10 - Radio Perfecta; Saint-Max,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 288 x 193 x 162 mm / 11.3 x 7.6 x 6.4 inch

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Author
• Model page created by Hartmut Völler. See "Data change" for further contributors.
