346

Radio-Alterna, F. Gautier; Paris

Data
Forum
Pictures
Collections

  • Year
  • 1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 294659
    • alternative name: Gautier François
    • Brand: Alterna

 Technical Specifications

  • Number of Tubes
  • 6
  • Valves / Tubes
  • Main principle
  • Superhet with RF-stage
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 346 - Radio-Alterna, F. Gautier;
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Notes

  • Poste à 6 lampes : 1 HF écran à pente variable, 1 oscillatrice détectrice à écran, 1 MF à écran, 1 détectrice à écran, 1 BF trigrille et 1 valve. 2 circuits présélecteurs. Prise pick-up.

  • Price in first year of sale
  • 2,450.00 FRF
  • Mentioned in

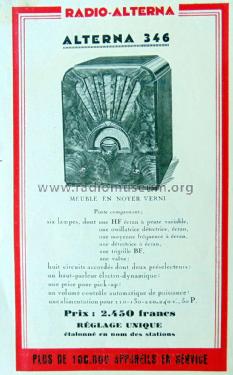

  • -- Original prospect or advert
  • Author
  • Model page created by Manfred Rathgeb. See "Data change" for further contributors.
