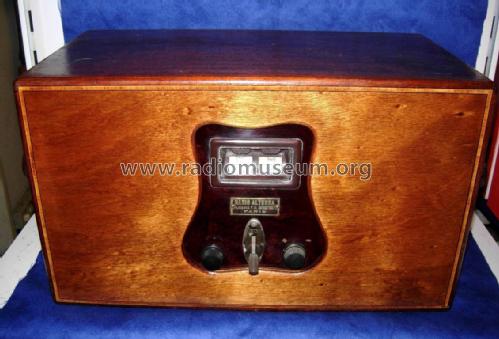

403B avec régulateur
Radio-Alterna, F. Gautier; Paris
- Country
- France
- Manufacturer / Brand
- Radio-Alterna, F. Gautier; Paris
- Year
- 1930/1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 84764
-
- alternative name: Gautier François
- Brand: Alterna

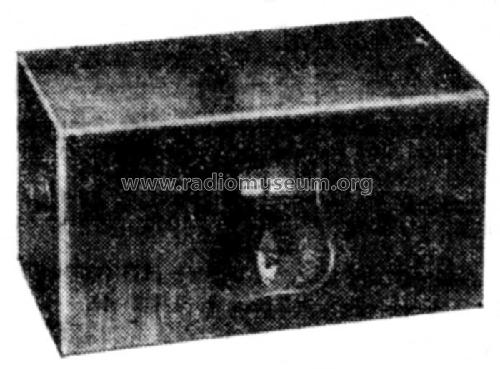

Radio-Magazine, 04.01.1931
Radio-Magazine, 04.01.1931
Radio-Magazine, 10.05.1931
- Number of Tubes
- 4
- Valves / Tubes
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: 403B [avec régulateur] - Radio-Alterna, F. Gautier;
- Shape
- Tablemodel, low profile (big size).
- Notes
-

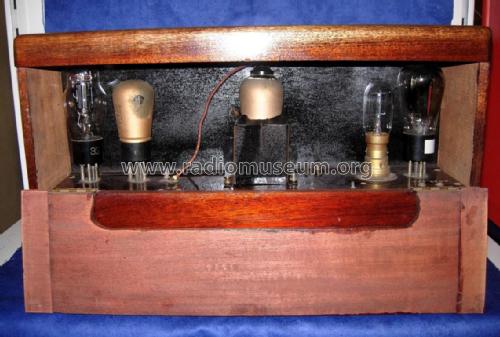

1 HF à écran, 1 détectrice, 1 BF de puissance + 1 valve. Régulateur à fer hydrogène.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Price in first year of sale
- 2,345.00 FRF
- Mentioned in
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 274, ref 1125)
- Literature/Schematics (1)
- Peugeot-Revue 1930/02/28
- Literature/Schematics (4)
- -- Original prospect or advert (Radio-Magazine, 04.01.1931)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 21 models, 17 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Radio-Alterna, F. Gautier; Paris
