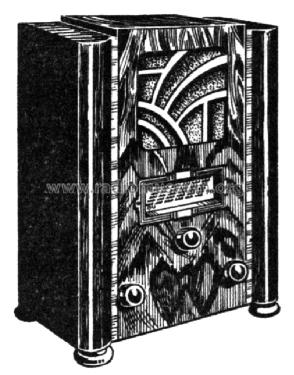

Cinédyne Secteur CFB
Radiociné (Radio-Ciné); Paris
- Country
- France
- Manufacturer / Brand
- Radiociné (Radio-Ciné); Paris
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 292699
Le Petit Parisien, 07.06.1935
Le Petit Parisien, 01.11.1934
Le Petit Parisien, 31.12.1934
Le Petit Parisien, 07.06.1935
- Number of Tubes
- 6
- Valves / Tubes
- 78 6A7 unknown_Tube unknown_Tube 43 unknown_Tube
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Cinédyne Secteur CFB - Radiociné Radio-Ciné; Paris
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 300 x 410 x 210 mm / 11.8 x 16.1 x 8.3 inch
- Notes
-
Lampes américaines. Présélecteur, étage HF. Prise pick-up.
Ébénisterie en noyer verni rehaussé d'un découpage argent.
- Price in first year of sale
- 1,200.00 FRF
- Literature/Schematics (1)
- -- Original prospect or advert (Le Petit Parisien, 01.11.1934, 07.06.1935)
