• Country
• Netherlands

• Manufacturer / Brand
• Radio-Compagnie Amsterdam

• Year
• 1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 134788

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• A410 A409 A415 B406

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Model II - Radio-Compagnie Amsterdam

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 505 x 350 x 275 mm / 19.9 x 13.8 x 10.8 inch

• Notes

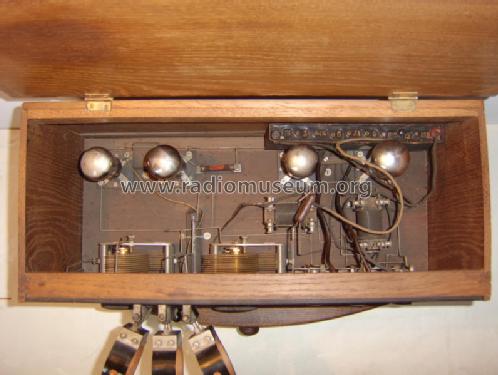

• Ebonite front and oak cabinet in art deco (Amsterdamse School) style. The cabinet has three black legs on both sides. A protruding drawer holds a complete set of coils and other material. The radio was made by a small semi-professional factory or workshop, as can be seen by the materials used. On the upper left a threefold coil base is visible. Below the coil base, knobs for antenna and primary tuning, between the two knobs a switch that can be used for frequencies above 2000 meters. On the right three rheostats. Below the rheostats binding posts for headset or loudspeaker. An on/off switch is situated above the middle rheostat. A cord set for the different voltages is situated at the back.

• Source of data
• - - Data from my own collection

• Author
• Model page created by John Koster. See "Data change" for further contributors.
