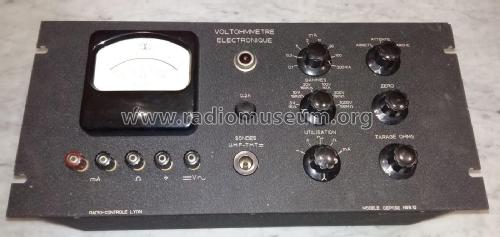

Voltohmmètre Électronique B 12
Radio-Contrôle; Lyon
- Country
- France
- Manufacturer / Brand
- Radio-Contrôle; Lyon
- Year
- 1952 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 298991
- Number of Tubes
- 3
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Voltohmmètre Électronique B 12 - Radio-Contrôle; Lyon
- Shape
- Rack
- Dimensions (WHD)
- 480 x 220 x 180 mm / 18.9 x 8.7 x 7.1 inch
- Notes
-

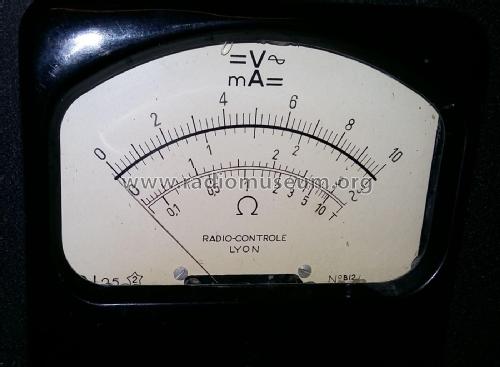

Plages de mesure :
- Courants CC en 8 gammes : 0,1 - 0,3 - 1 - 3 - 10 - 30 - 100 - 300 mA
- Tensions CC/CA en 6 gammes : 3 - 10 - 30 - 100 - 300 - 1000 V
- Résistances en 6 gammes : 1 - 10 - 100 KΩ - 1 - 10 - 100 MΩ
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
