• Country
• France

• Manufacturer / Brand
• Radioflux (Radio-Flux), P. Viviès; Metz

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 234743

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org

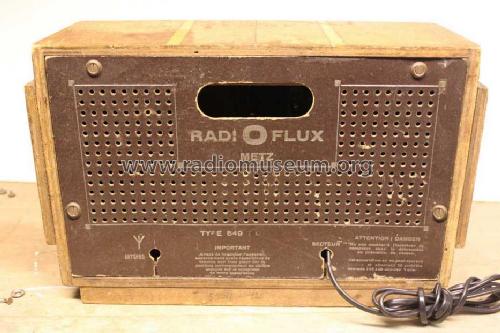

• Model: 549 TC - Radioflux Radio-Flux, P.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 370 x 200 x 230 mm / 14.6 x 7.9 x 9.1 inch

• Author
• Model page created by Patrice Isembart. See "Data change" for further contributors.

• Other Models

• Here you find 2 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Radioflux (Radio-Flux), P. Viviès; Metz
