• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1985 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 338478

• • Brand: SFER

• Number of Transistors
• Semiconductors present.

• Semiconductors
• MM5457

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 220 & for clock back-up 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

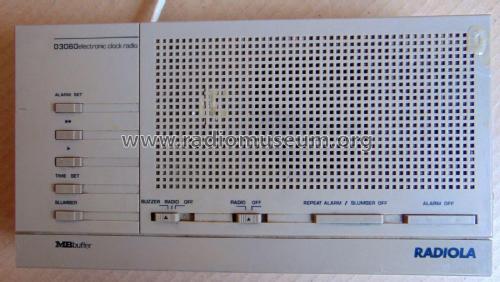

• Model: Electronic Clock Radio D3060 /18 - Radiola marque

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 260 x 55 x 135 mm / 10.2 x 2.2 x 5.3 inch

• Notes

• Made in Malaysia

• Net weight (2.2 lb = 1 kg)
• 0.950 kg / 2 lb 1.5 oz (2.093 lb)

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.

• Other Models

• Here you find 855 models, 565 with images and 276 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
