• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1966/1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 112085

• • Brand: SFER

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A28-13W

• Number of Transistors
• 42

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 110; 127; 220; 240 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

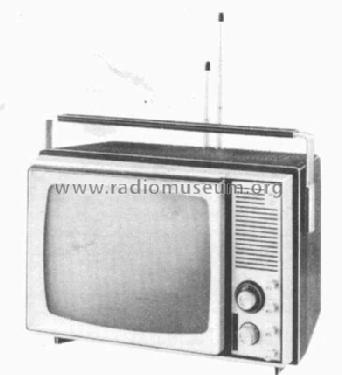

• Model: RA2860 - Radiola marque

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 352 x 260 x 226 mm / 13.9 x 10.2 x 8.9 inch

• Notes
• 28 cm dual standard 625/819 lines b/w TV with French standard VHF-/UHF tuner.

• Net weight (2.2 lb = 1 kg)
• 7.8 kg / 17 lb 2.9 oz (17.181 lb)

• Mentioned in
• FR "Television" No 162 March/April 1966

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
