• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 101876

• • Brand: SFER

• Number of Tubes
• 4

• Valves / Tubes

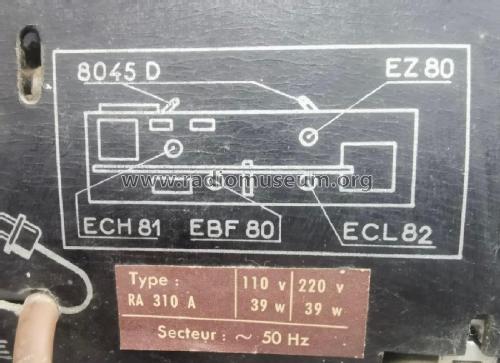

• EZ80 ECH81 EBF80 ECL82 or EBC81

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RA310A - Radiola marque

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 337 x 175 x 185 mm / 13.3 x 6.9 x 7.3 inch

• Notes
• Chassis same as Philips B3F01A. Colours: bordeaux, dark grey or ivory.

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• -- Original prospect or advert (Prospekt: "Radiola 1962" Seite 9)

• Author
• Model page created by John Koster. See "Data change" for further contributors.

• Other Models

• Here you find 855 models, 565 with images and 276 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
