Radiola 312
Radiola (marque)
- Country
- France
- Manufacturer / Brand
- Radiola (marque)
- Year
- 1931/1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 109587
-
- Brand: SFER

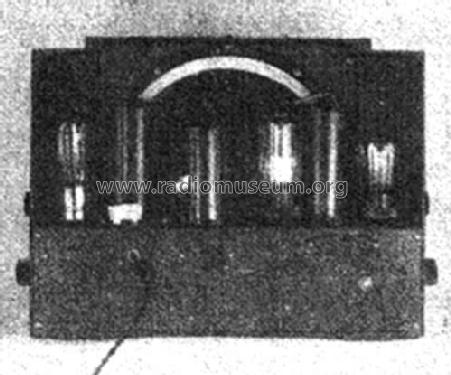

La Nature, 1932, 1er, p.136
La Nature, 1932, 1er, p.136
Catalogue Arc-Radio 1932
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 42-50 Hz, 100-250 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) of high quality (4 magnet poles). / Ø 28 cm = 11 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Radiola 312 - Radiola marque
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 400 x 305 x 155 mm / 15.7 x 12 x 6.1 inch
- Notes
-
Récepteur monobloc-secteur à 4 tubes (3 lampes plus valve), comportant une lampe HF à écran de grille. Haut-parleur à 4 pôles. Cadran lumineux.
Voir aussi modèle Radiola 311 sans circuit filtre d'interférence.
- Price in first year of sale
- 2,200.00 FRF
- Mentioned in
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 349)
- Literature/Schematics (1)
- La Nature, 1932, 1er, p.136
- Literature/Schematics (2)
- Catalogue Arc-Radio 1932
- Literature/Schematics (3)
- -- Original prospect or advert (L'Intransigeant, 24.12.1931)
- Author
- Model page created by Willy Ostertag. See "Data change" for further contributors.
