RA3133A (/00)

Radiola (marque)

Data
Forum
Pictures
Collections

  • Year
  • 1962–1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 103613
    • Brand: SFER

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 90; 110; 127; 145: 190; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

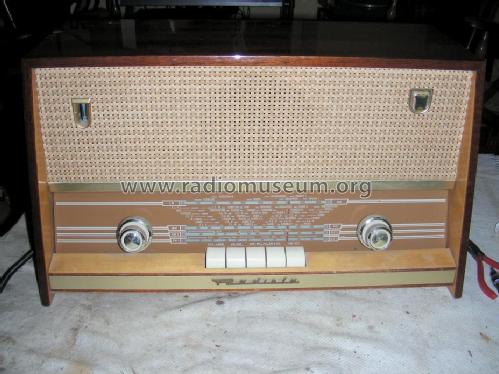

  • Model: RA3133A - Radiola marque
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 440 x 250 x 185 mm / 17.3 x 9.8 x 7.3 inch
  • Notes

  • 4 gammes d'ondes: GO 750 - 2000 m, PO 185,2 - 580 m, OC1 58,8 - 168,4 m, OC2 16,58 - 50,5 m. Gamme chalutier (?). Cadre antiparasites et antenne-plaque OC. Clavier 5 touches. Contrôle de tonalité continu. Prise pick-up.

    Ébénisterie vernie.

    Voir aussi modèle belge Aristona RA3133A.

    Fabriqué en Belgique.

  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by John Koster. See "Data change" for further contributors.
