• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1970

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 107345

• • Brand: SFER

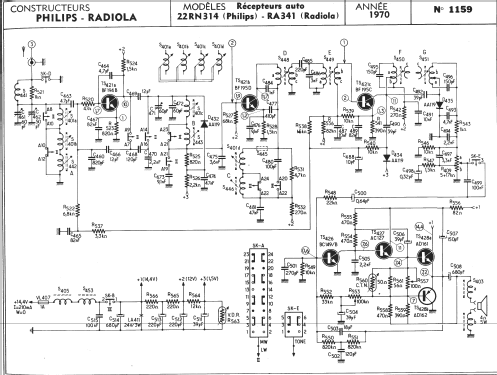

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• BF194 BF195 BF195 BC149 AC127 AD161 AD162 AA119 AA119 AA119

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: RA341 - Radiola marque

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 178 x 41 x 82 mm / 7 x 1.6 x 3.2 inch

• Notes

• Équivalent au Philips 22RN314.

• Mentioned in
• Schémathèque Sorokine (SRK) (Nr. 1159)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
