Super Octode RA560A
Radiola (marque)
- Country
- France
- Manufacturer / Brand
- Radiola (marque)
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103183
-
- Brand: SFER
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 115 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 103-253 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org

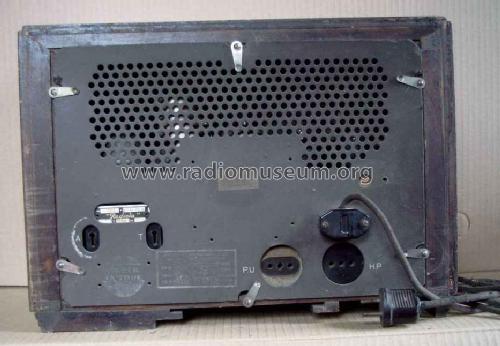

- Model: Super Octode RA560A - Radiola marque
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 300 x 270 mm / 16.5 x 11.8 x 10.6 inch
- Notes
-
Loudspeaker 4281.
Das Gerät arbeitet bei einem Netzfrequenz von 42-100Hz, insgesamt sind am Trafo 12 Netzspannungen von 103 bis 253 V mit Stegen einstellbar.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by John Koster. See "Data change" for further contributors.
