RA6026B
Radiola (marque)
- Country
- France
- Manufacturer / Brand
- Radiola (marque)
- Year
- 1964 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 112094
-
- Brand: SFER
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- EBF89 PCL82 EF184 EF184 PF86 PCL85 EL183 PCF80 PCF80 PL500 PY88 DY86 PCC189 PCF86 PC88 PC86 unknown_Tube
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (unknown quality)
- from Radiomuseum.org

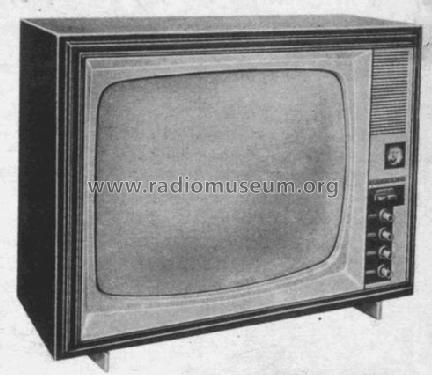

- Model: RA6026B - Radiola marque
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 725 x 515 x 405 mm / 28.5 x 20.3 x 15.9 inch
- Notes
- Picture tube 59 cm.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
