• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1964

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 111918

• • Brand: SFER

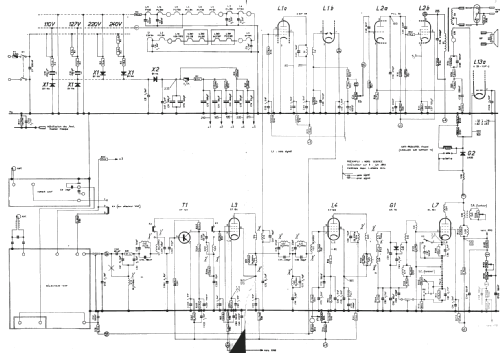

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• EBF89 PCL86 EF184 EF184 PF86 PCL85 EL183 PCF80 PCF80 PL500 PY88 DY86 PCC189 PCF801 PC88 PC86 A59-11W

• Number of Transistors
• 1

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• from Radiomuseum.org
• Model: RA6052 - Radiola marque

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 600 x 520 x 375 mm / 23.6 x 20.5 x 14.8 inch

• Notes
• Transistor: AF121.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
