• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111536

• • Brand: SFER

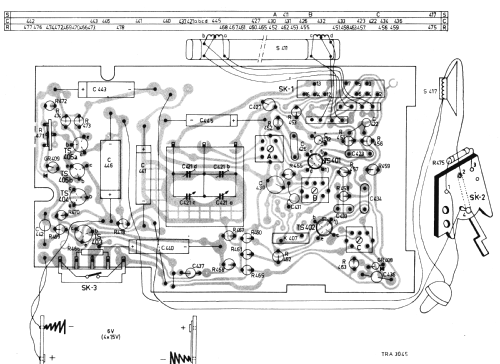

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 × 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RA6231T - Radiola marque

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes
• Transistors: 2× AF127, 2× AC127, AC126, AC132.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
