• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111519

• • Brand: SFER

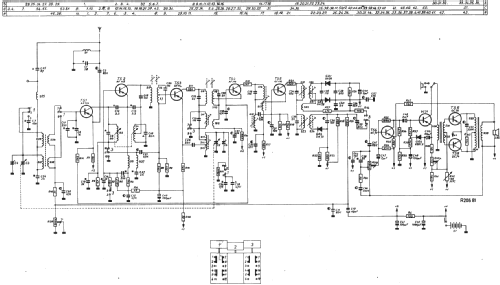

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF114 AF116 AF115 AF116 AF116 OC71 OC71 OC74 OC74 OA79 OA79 E25C5

• Main principle
• Superheterodyne (common); ZF/IF 452/6750 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 × 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.3 W (unknown quality)

• from Radiomuseum.org
• Model: RA6242T /00X - Radiola marque

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 150 x 75 mm / 9.8 x 5.9 x 3 inch

• Notes
• Transistors: 3× AF116, AF114, AF115, 2× OC71, 2× OC74.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
