• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111543

• • Brand: SFER

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF127 AF127 AC127 AC126 AC132 AC127 AA119 BA114

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 × 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

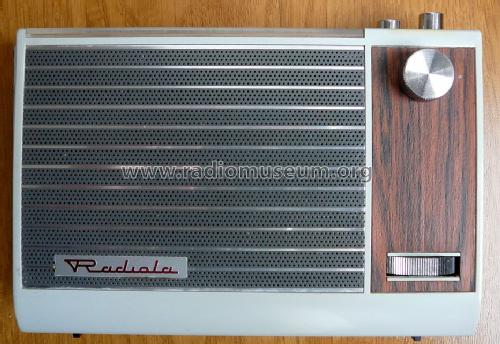

• Model: RA6301T - Radiola marque

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 150 x 96 x 39 mm / 5.9 x 3.8 x 1.5 inch

• Notes

• Wave bands:

  • MW: 187-571 m
  • LW: 1177-2000 m.

• Net weight (2.2 lb = 1 kg)
• 0.360 kg / 0 lb 12.7 oz (0.793 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
