• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 143935

• • Brand: SFER

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 EBL21 EAF42 EAF42 EM4 AZ1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 23 cm = 9.1 inch

• Material
• Wooden case

• from Radiomuseum.org

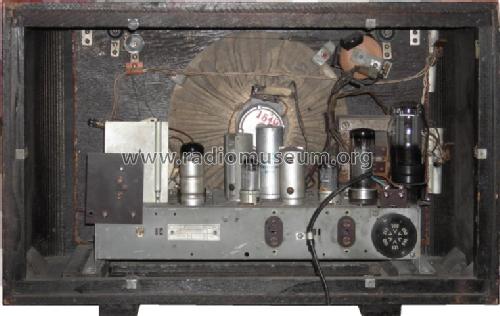

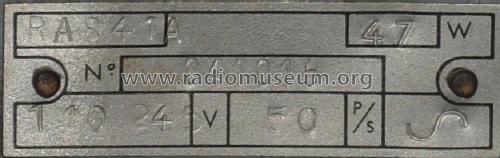

• Model: RA841A [6 valves] - Radiola marque

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 334 x 232 mm / 20.5 x 13.1 x 9.1 inch

• Notes
• 4-mal Kurzwelle; weitgehend baugleich mit Philips BF594A

• Net weight (2.2 lb = 1 kg)
• 10.3 kg / 22 lb 11 oz (22.687 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.

• Other Models

• Here you find 855 models, 565 with images and 276 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
