• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 210586

• • Brand: SFER

• Number of Tubes
• 6

• Valves / Tubes
• ECH41 EAF41 EAF41 EL41 EM4 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: RA942A - Radiola marque

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 450 x 310 x 230 mm / 17.7 x 12.2 x 9.1 inch

• Notes

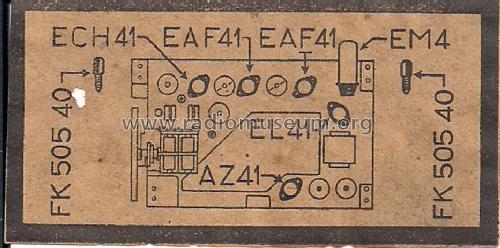

• La targhetta di alluminio fissata sul retro del telaio riporta come modello RA942A. All'interno del mio esemplare è incollato uno specchietto delle valvole previste , che sono quelle sopra riportate; tuttavia il mio esemplare monta come convertitrice una ECH42 , mentre le due successive ( amplificatore MF e rivelatore/preamplificatore BF)sono EAF42.

• Author
• Model page created by Mario Del Grande. See "Data change" for further contributors.

• Other Models

• Here you find 855 models, 565 with images and 276 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
