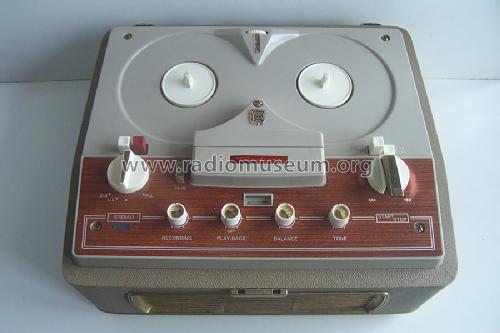

RA9547
Radiola (marque)
- Country
- France
- Manufacturer / Brand
- Radiola (marque)
- Year
- 1962 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 157539
-
- Brand: SFER
- Number of Transistors
- 13
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 245 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 12 cm = 4.7 inch
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RA9547 - Radiola marque
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 390 x 320 x 170 mm / 15.4 x 12.6 x 6.7 inch
- Notes
- Radiola RA-9547 est un magnétophone stéréophonique à bande de 15 cm. En France ce modèle est aussi commercialisé sous la marque Philips EL3547 . 2 vitesses 4,75 et 9,5.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Jacky Parmentier. See "Data change" for further contributors.
