RA18A -29

• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73901

• • Brand: SFER

• Picture

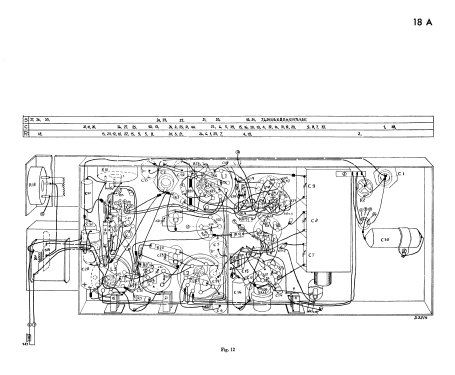

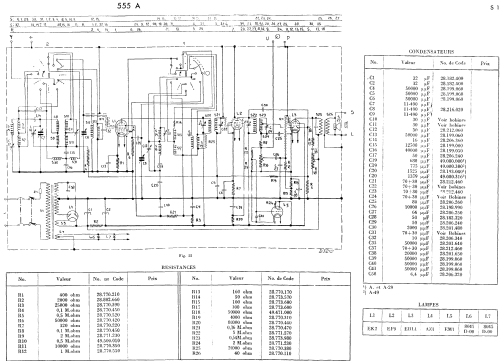

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EK2 EF9 EBL1 AZ1 EM1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: RA18A -29 - Radiola marque

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 500 x 300 x 240 mm / 19.7 x 11.8 x 9.4 inch

• Notes

• 3 gammes d'ondes : OC de 16.7 à 51 m, OM (PO) de 198 à 585 m, OL (GO) de 708 à 2000 m. Syntonisation par six boutons poussoirs. Réglage de tonalité progressif. Haut-parleur type 9636.

  Équivalent au Philips Sérénade 555A.

• External source of data
• Radiola: Retrospective Des Recepteurs

• Author
• Model page created by Robert Schmalstieg. See "Data change" for further contributors.
