• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1960–1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75200

• • Brand: SFER

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Material
• Wooden case

• from Radiomuseum.org

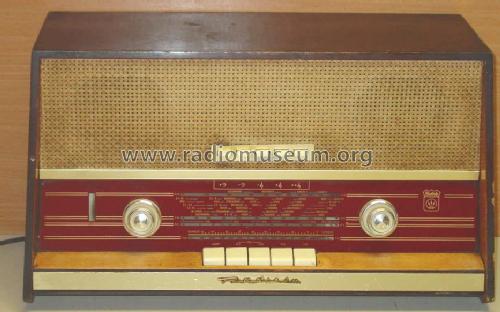

• Model: RA421A - Radiola marque

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 490 x 270 x 210 mm / 19.3 x 10.6 x 8.3 inch

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Source of data
• Le grand livre de la TSF

• Author
• Model page created by Patrice Zeissloff. See "Data change" for further contributors.
