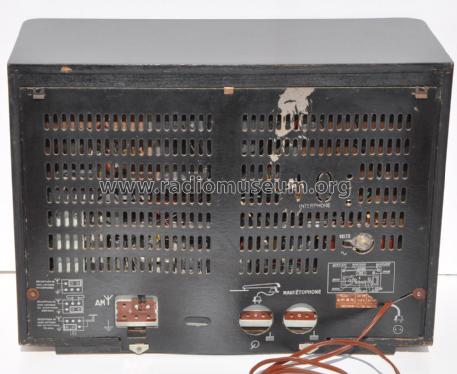

RA565 AM/FM (RA565A)
Radiola (marque)
- Country
- France
- Manufacturer / Brand
- Radiola (marque)
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 76391
-
- Brand: SFER
Dépliant série 1955
Dépliant série 1955
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10500 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: RA565 AM/FM - Radiola marque
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 500 x 345 x 210 mm / 19.7 x 13.6 x 8.3 inch
- Notes
-
4 gammes d'ondes : OC de 16 à 32 m, PO de 187 à 571 m, GO de 1100 à 1970 m et FM de 87.5 à 100.5 MHz. Cadre ferrite orientable, antenne dipôle FM. Tonalité réglable continu, commutateur grave. Clavier 6 touches éclairées. Emplacement pour interphone.
Ébénisterie noyer verni 2 tons.
Équivalent au Philips BF545A.
Dans certains appareils, la plaque du type ne mentionne que "RA565 AM/FM". Il existe un exécution pour l'exportation avec cadran en allemand.
Note: In the schematic numbered N° 886 elco C42 (FM detection) is shown with wrong polarity connections. The positive pole should be connected to ground.
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Schémathèque Éditions Radio (SER) (No. 886)
- Author
- Model page created by Lutwin Berndt † 5.10.14. See "Data change" for further contributors.
