Radiostandard SG1 culot en Y
Radiola (marque)
- Country
- France
- Manufacturer / Brand
- Radiola (marque)
- Year
- 1923
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 289215
-

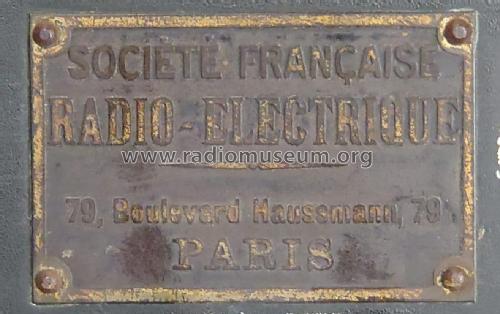

- Brand: SFER
mit Original "Radiola" Y-culot

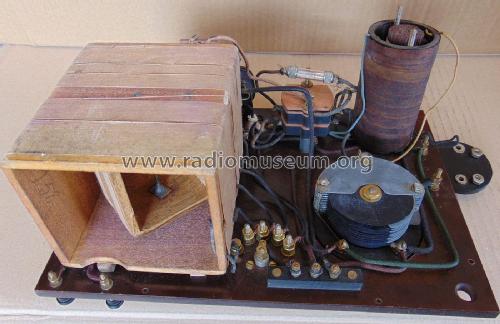

R ersetzt durch R im Glasrohr
R im Glasrohr "neu"
aus depliant ohne Datum T.S.F. Le Radiola
Collection privée (réf.: 2721)
Collection privée (réf.: 2721)
Collection privée (réf.: 2721)
Collection privée (réf.: 2721)
Collection privée (Réf.: 2721)
- Number of Tubes
- 4
- Valves / Tubes
- TM_Culot-Y TM_Culot-Y TM_Culot-Y TM_Culot-Y
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 4 & 80 Volt
- Loudspeaker
- - This model requires external speaker(s).

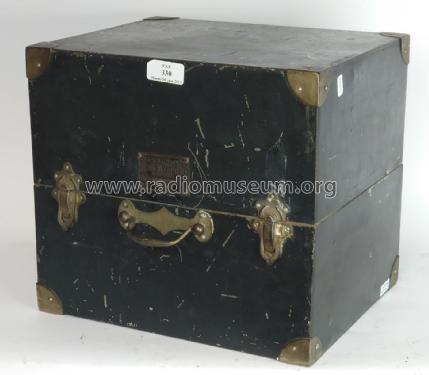

- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiostandard SG1 [culot en Y] - Radiola marque
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 320 x 280 x 280 mm / 12.6 x 11 x 11 inch
- Notes
-
supplement pour haut-parleur 295 FRF, élément spécial H.F. pour Le Radiostandard 550 FRF
Gewicht und Abmessungen mit Deckel, offenes Gerät ohne Röhren 320x170x280
- Net weight (2.2 lb = 1 kg)
- 5.6 kg / 12 lb 5.4 oz (12.335 lb)
- Price in first year of sale
- 1,280.00 FRF
- Mentioned in
- -- Original prospect or advert (Cat. Intermédiaire Avril 1923, p. 93)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
