• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1957–1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 102818

• • Brand: SFER

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA79 OA85

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

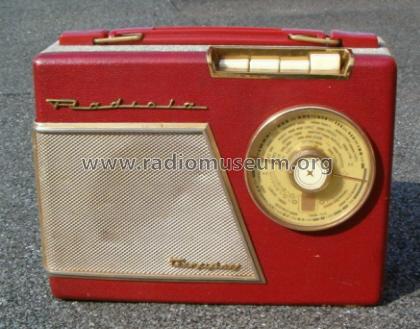

• Model: Superstor RA388T - Radiola marque

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 180 x 90 mm / 9.8 x 7.1 x 3.5 inch

• Notes

• 2 gammes d'ondes PO et GO. Clavier à 4 touches. Cadre Microcapteur de 200 mm incorporé.

  Coffret bois gainé en Rexine vert ou rouge. Modele luxe porc véritable.
  Prix piles comprises, sans T.L.

  Équivalent au Philips Portaletta L3F60T.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 36,820.00 FRF

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original prospect or advert (Catalogue 1957, 1958)

• Literature/Schematics (2)
• - - Manufacturers Literature (Prix de Catalogue, Septembre 1957)

• Author
• Model page created by John Koster. See "Data change" for further contributors.
