A2P avec 6BE6, alimentation 12 V
Radiomatic, S.F.R.T. (SFRT); Montreuil, Seine Saint Denise
- Country
- France
- Manufacturer / Brand
- Radiomatic, S.F.R.T. (SFRT); Montreuil, Seine Saint Denise
- Year
- 1953 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 313656
-
- alternative name: SFRT
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: A2P [avec 6BE6, alimentation 12 V] - Radiomatic, S.F.R.T. SFRT;
- Shape
- Chassis only or for «building in»
- Notes
-

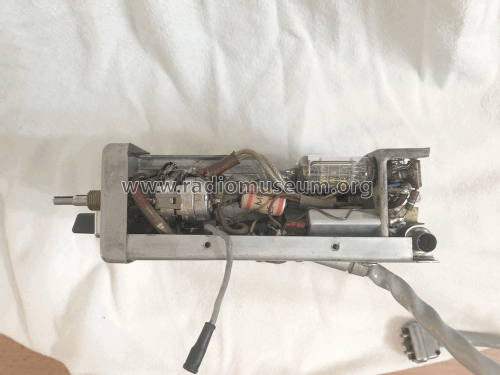

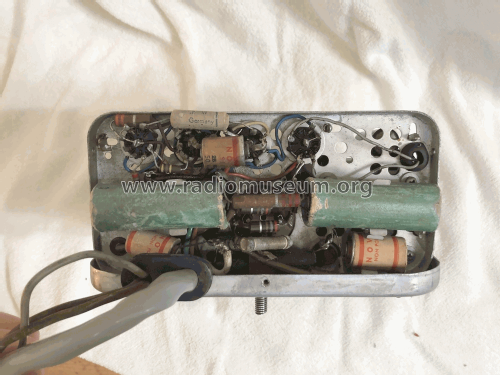

This is a variant of A2P Radiomatic car radio set. The power supply part is wired up only for 12V, no change board present for other voltage. The tube placement is in one straight line (see the schematic).
Band selection buttons and frequencies (Min, Pre-Set, Max), from left to the right:
MW: 500 kHz - 1,160 kHz (Strasburg) - 1,620 kHz
MW: 500 kHz - 863 kHz (Paris) - 1,620 kHz
MW: 500 kHz - 602 kHz (Lyon ?) - 1,620 kHz
LW: 140 kHz - 223 kHz (?) - 240 kHz
LW: 140 kHz - 170 kHz (?) - 240 kHz
