A3S

Radiomatic, S.F.R.T. (SFRT); Montreuil, Seine Saint Denise

Data
Forum
Pictures
Collections

  • Year
  • 1957
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 168020
    • alternative name: SFRT

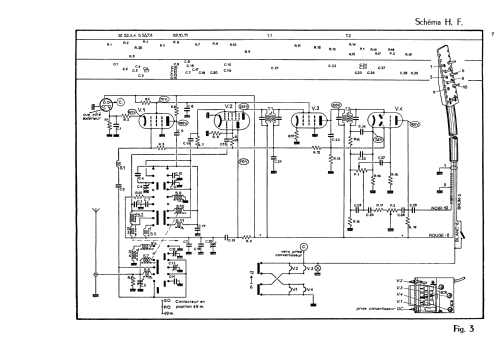

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 3 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: A3S - Radiomatic, S.F.R.T. SFRT;
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Rectifier 6BX5 is not existing. Must be a typo in the parts list.
    Boitier de commande 2.3kg, Boitier BF 2.6kg.
  • Net weight (2.2 lb = 1 kg)
  • 4.9 kg / 10 lb 12.7 oz (10.793 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
