- Country
- France
- Manufacturer / Brand
- Radiomatic, S.F.R.T. (SFRT); Montreuil, Seine Saint Denise
- Year
- 1940 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 111929
-
- alternative name: SFRT

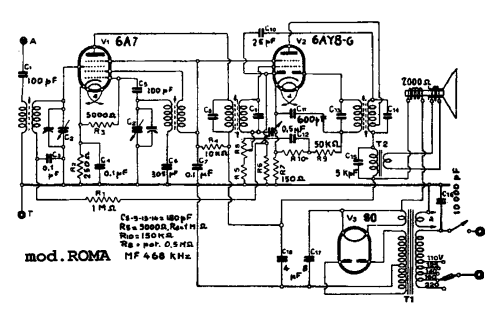

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s); Reflex
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Roma - Radiomatic, S.F.R.T. SFRT;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 305 x 245 x 185 mm / 12 x 9.6 x 7.3 inch
- Notes
- radio popolare italiana.
- Other Models
-
Here you find 83 models, 78 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
