• Country
• France

• Manufacturer / Brand
• Radio-MJ (M.-J.); Paris

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 323273

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• R236 1R5 R236 R236 1S5 3A4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 1.5 & 100 & 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Hexapile 51 - Radio-MJ M.-J.; Paris

• Shape
• Tablemodel, with any shape - general.

• Notes

• Pile 4.5 V pour l'éclairage seulement.
  Bloc 4 gammes avec bande maritime (75 à 200 m) en option.

  Ébenisterie à colonnes.

• Mentioned in

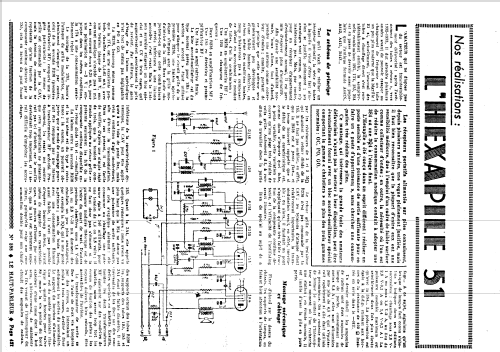

• Le Haut-Parleur (No 898, 28.06.1951)

• Author
• Model page created by Jean Marchal. See "Data change" for further contributors.
