• Country
• France

• Manufacturer / Brand
• Radio-MJ (M.-J.); Paris

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 137450

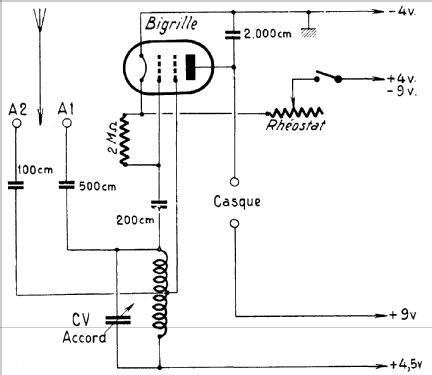

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A441N

• Main principle
• Reaction

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4,5 & 9 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Poste de Vacance Poste à 1 Bigrille - Radio-MJ M.-J.; Paris

• Notes
• Alimentation avec 1 pile de 9V avec prise à 4.5V et une pile de 4.5V(chauffage)

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.

• Other Models

• Here you find 41 models, 10 with images and 25 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
