Record 51
Radio-MJ (M.-J.); Paris
- Country
- France
- Manufacturer / Brand
- Radio-MJ (M.-J.); Paris
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323683

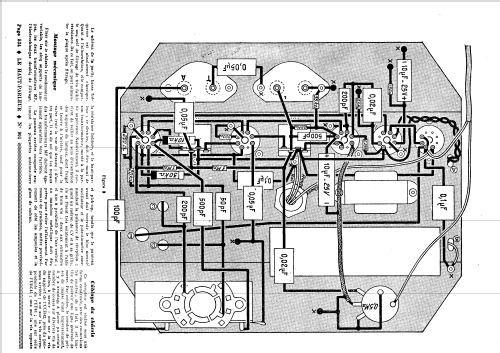

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Record 51 - Radio-MJ M.-J.; Paris
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Bloc HF Roize modèle Super 3 gammes.
Ce modèle a été également commercialisé par Général-Radio, Paris.
- Price in first year of sale
- 11.39 FRF
- Mentioned in

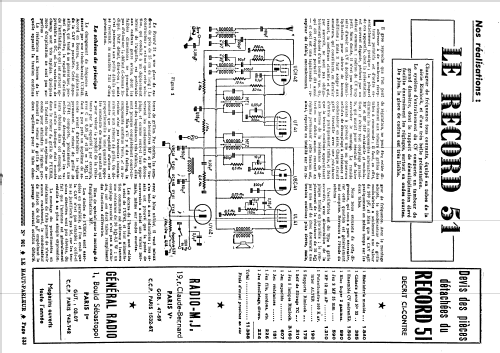

- Le Haut-Parleur (No 901, 09.08.1951)
- Author
- Model page created by Jean Marchal. See "Data change" for further contributors.
- Other Models
-
Here you find 41 models, 10 with images and 25 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Radio-MJ (M.-J.); Paris
