• Country
• France

• Manufacturer / Brand
• Radio-MJ (M.-J.); Paris

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 265626

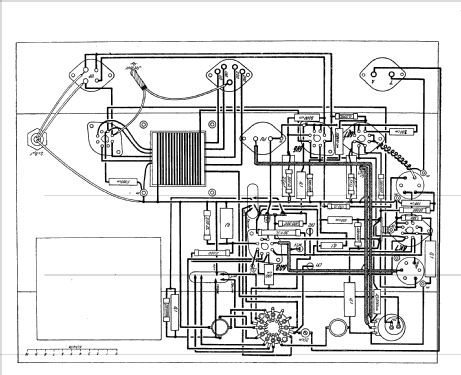

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6V6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super Alternatif - Radio-MJ M.-J.; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 280 x 250 mm / 21.7 x 11 x 9.8 inch

• Notes

• Ebénisterie palissandre verni au tampon.



• Price in first year of sale
• 495.00 FRF

• Mentioned in

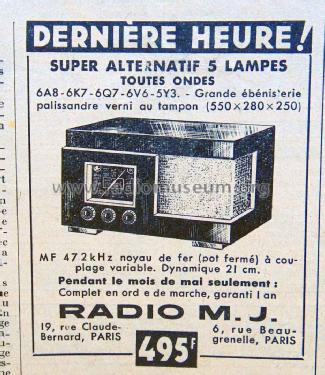

• Pub en Radioconstructeur No 32 Mai 1939 p.283

• Literature/Schematics (1)
• Le grand livre de la TSF (Fiche 13044)

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.
