- Country
- France
- Manufacturer / Brand
- Radiomuse, A. Robert; Paris, Montrouge
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 100432

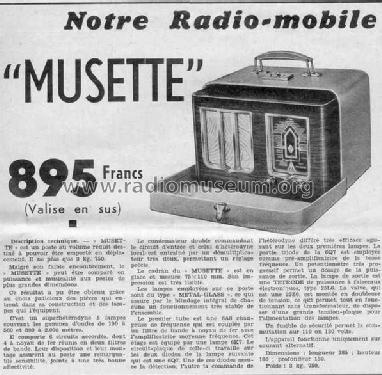

Publicité Radiomuse
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 110; 130; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch
- Power out
- 1.7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Musette - Radiomuse, A. Robert; Paris,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 280 x 180 x 150 mm / 11 x 7.1 x 5.9 inch
- Notes
- Dial lamp: 3x 6,3V/0,1A
- Net weight (2.2 lb = 1 kg)
- 3.7 kg / 8 lb 2.4 oz (8.15 lb)
- Price in first year of sale
- 895.00 FRF
- Circuit diagram reference
- La Documentation du Revendeur - Radio
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
