• Country
• France

• Manufacturer / Brand
• Radiomuse, A. Robert; Paris, Montrouge

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 76232

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EM4 GZ40

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

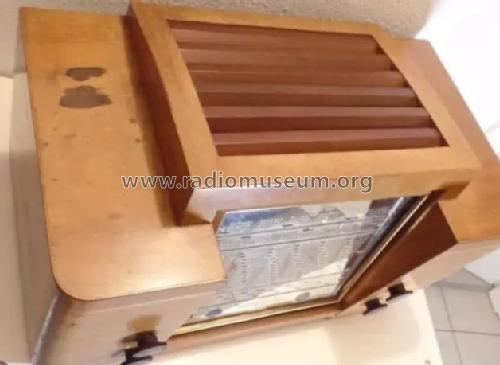

• Material
• Wooden case

• from Radiomuseum.org
• Model: Pinacle 51 - Radiomuse, A. Robert; Paris,

• Shape
• Tablemodel, low profile (big size).

• Literature/Schematics (4)

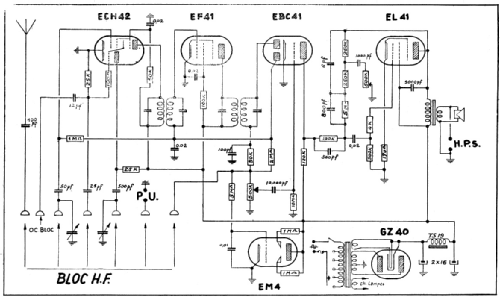

• -- Schematic

• Author
• Model page created by Manfred Kröll † 2.9.2013. See "Data change" for further contributors.
