• Country
• Austria

• Manufacturer / Brand
• Radione (RADIO Nikolaus Eltz); Wien

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10312

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• KK2 KF3 KBC1 KL4

• Main principle
• Superheterodyne (common); ZF/IF 433 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

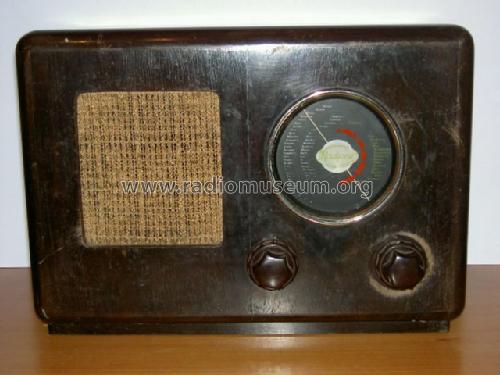

• Model: 5038B [Type 1938] - Radione RADIO Nikolaus Eltz;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 328 x 230 x 210 mm / 12.9 x 9.1 x 8.3 inch

• Notes

• Version des Radione 5038U für Batteriebetrieb.

  Im Radiokatalog Erb wird ein scheinbar identisches Modell 5038B geführt mit dem Hinweis "eventuell nur Export (Schweiz)". Die Thali-Schemasammlung führt das Modell mit einer  ZF von 430 kHz, siehe dort.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 268.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Literature/Schematics (1)
• -- Original prospect or advert (Tiroler Anzeiger, 11.09.1937)
