Autoselect ASEW (MSEW)

• Country
• Austria

• Manufacturer / Brand
• Radione (RADIO Nikolaus Eltz); Wien

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10294

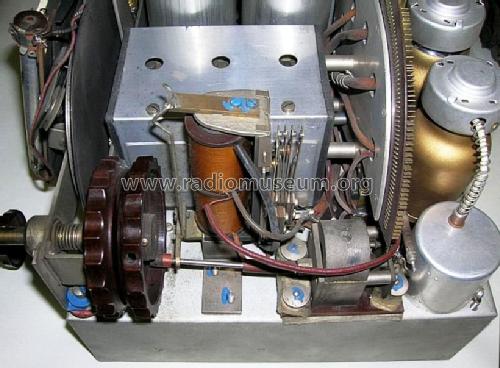

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• AK2 AF7 AB2 AF3 ABC1 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Autoselect ASEW - Radione RADIO Nikolaus Eltz;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 445 x 445 x 310 mm / 17.5 x 17.5 x 12.2 inch

• Notes
• Abstimm-Anzeige; Motor-Abstimmung!

• Net weight (2.2 lb = 1 kg)
• 16.7 kg / 36 lb 12.5 oz (36.784 lb)

• Price in first year of sale
• 840.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Picture reference

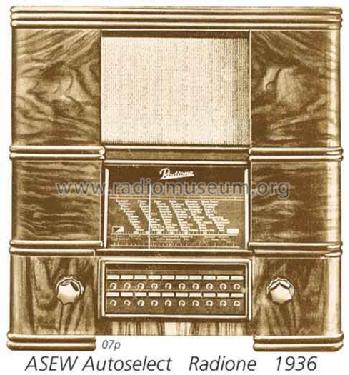

• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
