Jupiter S/W

Radione (RADIO Nikolaus Eltz); Wien

Data

Forum

Pictures

Collections

Country
Austria

Manufacturer / Brand
Radione (RADIO Nikolaus Eltz); Wien

Year
1963

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
10496

Schematics

Jupiter S/W; Radione RADIO (ID = 110781) Radio — Radione RADIO Jupiter S/W (3)

Jupiter S/W; Radione RADIO (ID = 110782) Radio — Radione RADIO Jupiter S/W (3)

Jupiter S/W; Radione RADIO (ID = 110784) Radio — Radione RADIO Jupiter S/W (3)

Jupiter S/W; Radione RADIO (ID = 110783) Radio — Radione RADIO Jupiter S/W (3)

Jupiter S/W; Radione RADIO (ID = 1015237) Radio — Radione RADIO Jupiter S/W (3)

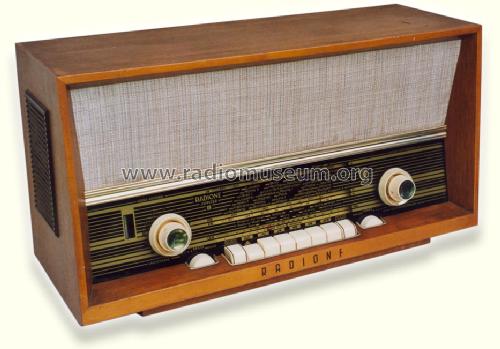

Jupiter S/W; Radione RADIO (ID = 57786) Radio — Radione RADIO Jupiter S/W (2)
Sammlung: A. Fröhlich

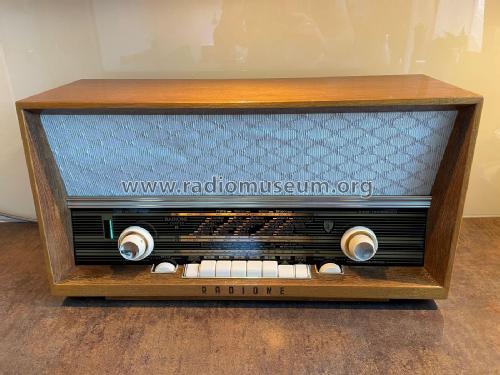

Jupiter S/W; Radione RADIO (ID = 2908453) Radio — Radione RADIO Jupiter S/W (1)

Jupiter S/W; Radione RADIO (ID = 2908459) Radio — Radione RADIO Jupiter S/W (1)

Jupiter S/W; Radione RADIO (ID = 2908460) Radio — Radione RADIO Jupiter S/W (1)

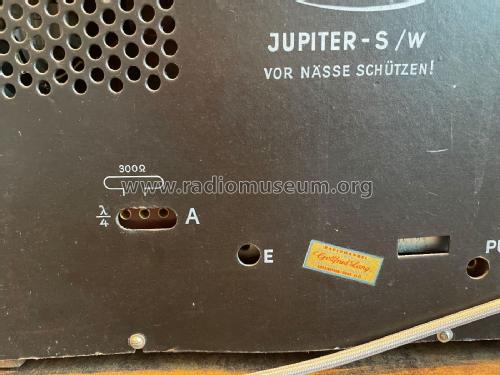

Jupiter S/W; Radione RADIO (ID = 2908461) Radio — Radione RADIO Jupiter S/W (1)

Jupiter S/W; Radione RADIO (ID = 2908462) Radio — Radione RADIO Jupiter S/W (1)

Jupiter S/W; Radione RADIO (ID = 2908454) Radio — Radione RADIO Jupiter S/W (1)

Jupiter S/W; Radione RADIO (ID = 2908455) Radio — Radione RADIO Jupiter S/W (1)

Jupiter S/W; Radione RADIO (ID = 2908456) Radio — Radione RADIO Jupiter S/W (1)

Jupiter S/W; Radione RADIO (ID = 2908457) Radio — Radione RADIO Jupiter S/W (1)

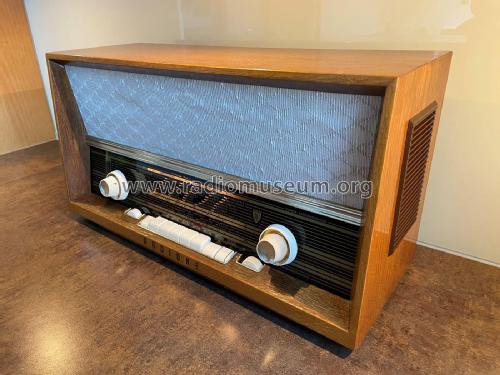

Jupiter S/W; Radione RADIO (ID = 2908458) Radio — Radione RADIO Jupiter S/W (1)

Jupiter S/W; Radione RADIO (ID = 2029059) Radio — Radione RADIO Jupiter S/W (2)
Elektro Haushalt 1965

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
7

Valves / Tubes
ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80

Main principle
Superheterodyne (common); ZF/IF 452/10420 kHz

Tuned circuits
6 AM circuit(s) 9 FM circuit(s)

Wave bands
Broadcast, Long Wave, Short Wave plus FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 125, 220, 240 Volt

Loudspeaker
3 Loudspeakers

Material
Wooden case

from Radiomuseum.org
Model: Jupiter S/W - Radione RADIO Nikolaus Eltz;

Shape
Tablemodel with Push Buttons.

Price in first year of sale
2,720.00 ATS

External source of data
E. Erb 3-907007-36-0

Source of data
Radiokatalog Band 2, Ernst Erb

Circuit diagram reference
Unterlagen E.Erb

Literature/Schematics (1)
-- Original-techn. papers.
